星寶機電股份有限公司
SHINPOR ELECTRIC&MACHINE CO.,LTD.
盤式剎車馬達 各種馬達控制器 電容電感

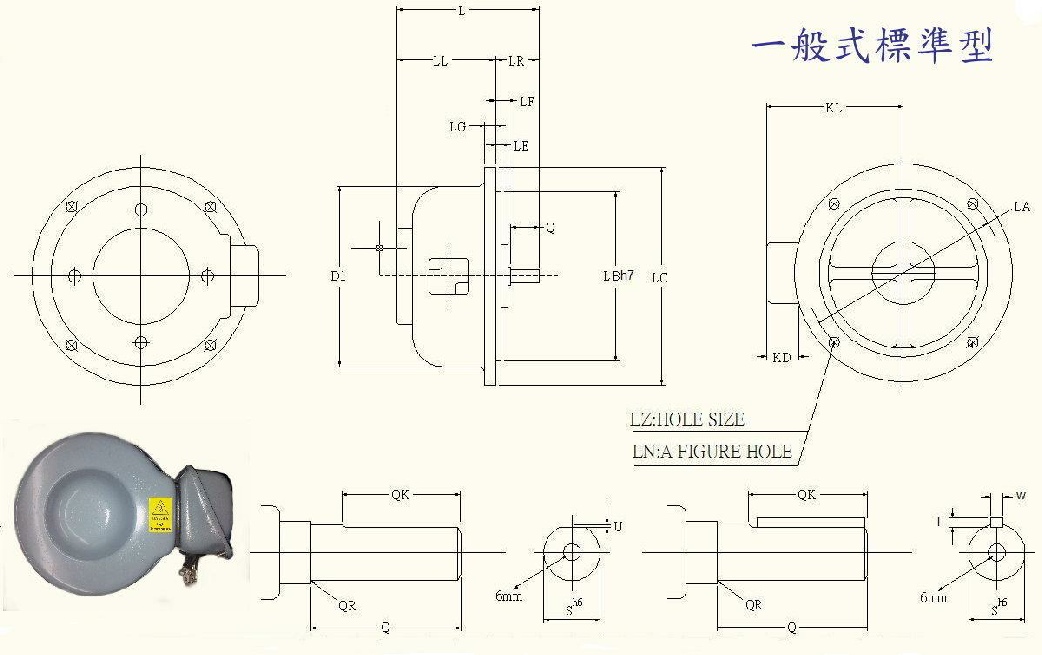

�STANDARD TYPE
Ratuing
Frame No.
Dimensions in mm.
Bearing No.
Output Kw
Poles
Time Rating Min
D1
L
LA
LBh7
LC
LE
LF
LG
LL
LN
LZ
LR
KL
KD
Shaft Extension
Q
QK
QR
Sh6
T
U
W
0.1
4
Continuity
DBM-100N-4ST
150
131
165
130
180
3
6
11
100
4
7
31
120
21
23
18
1.5
11
N/A
1
N/A
6202ZZ / 6002ZZ
0.2
4
Continuity
DBM-200N-4ST
194
155
215
180
236
3
6
13
117
4
10
38
145
22
30
25
2
14
5
3
5
6204ZZ / 6004ZZ
0.4
4
Continuity
DBM-400N-4ST
0.5
4
30 Minutes
DBM-500N-4ST
0.75
4
Continuity
DBM-750N-4ST
235
203
265
230
300
4
5
18
146
4
15
57
175
27
50
35
2
24
7
4
7
6206ZZ / 6006ZZ
1.5
4
1 Hour
DBM-1500N-4ST
268
209
300
250
335
5
13
18
145
4
15
66
187
27
50
35
2
24
7
4
7
6207ZZ / 6007ZZ
2.2
4
30 Minutes
DBM-2200N-4ST
268
226
300
250
335
5
14
19
160
4
15
66
190
27
50
35
2
28
7
4
7
3.7
4
15 Minutes
DBM-3700N-4ST
268
236
300
250
335
5
14
19
160
4
15
76
190
27
60
45
2
28
7
4
7
